The multi purpose cultivator is multifunctional. This cultivator offers a solution in many circumstances, both in light and heavy soil, and in difficult areas for cultivation. The machine has large, rigid tines with free passage to remove any bothersome soil layers.

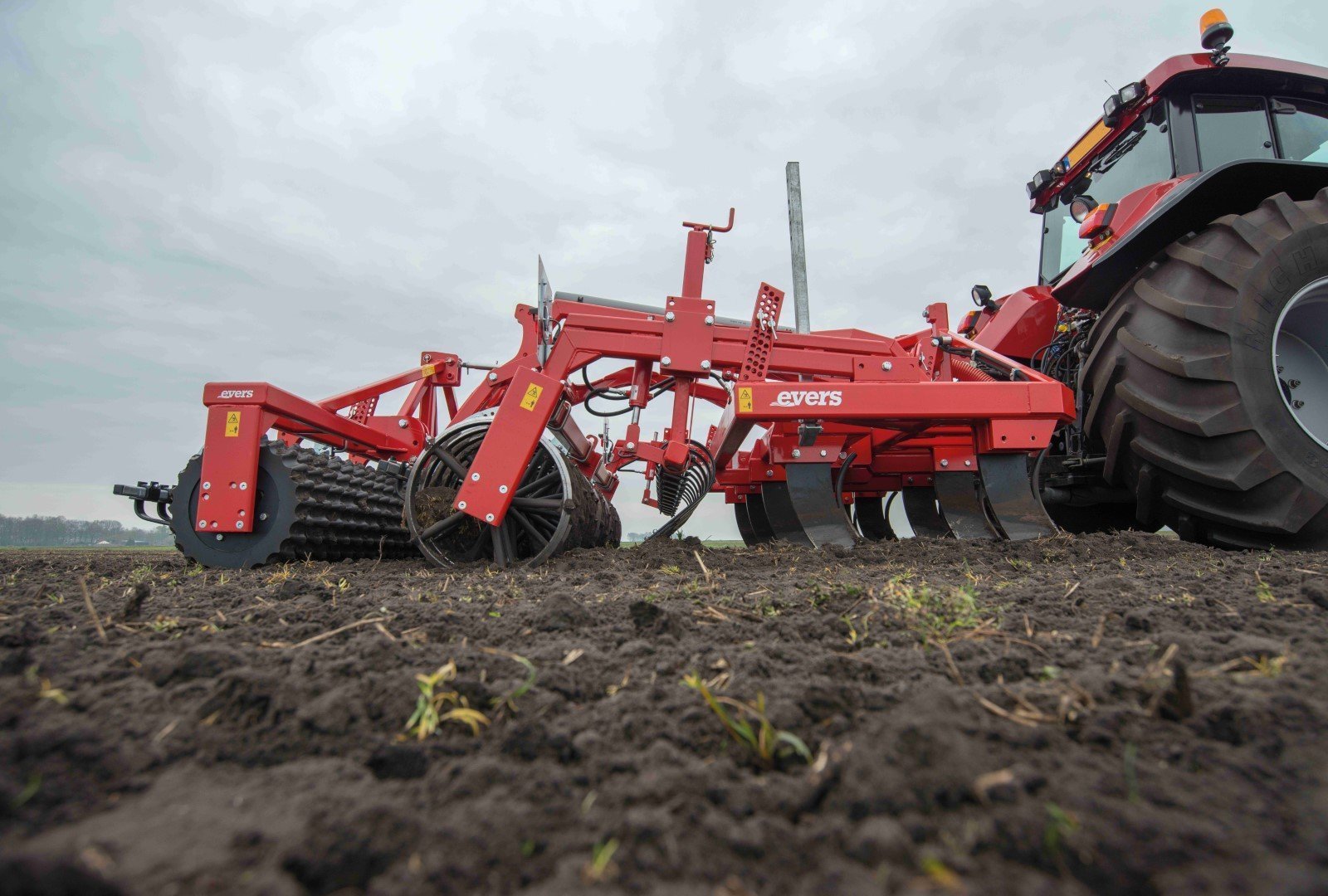

The Evers multi purpose cultivator is a versatile rigid-tine cultivator that can be used for several operations. It is possible to raise the rear row of tines by means of a hydraulic cylinder. This allows for the cultivation at depth of parts of the field that are hard to work on, such as headlands. The unique "elevator" version allows to raise the rear row of tines straight up. That allows for working at different depths at once.
With its different types of cultivator tines, the multi purpose cultivator is suitable for all soil types:
The multi purpose cultivator is available with two or three rows of tines; the latter design offers an even greater passage. This allows for more even cultivation, particularly in heavy soil, while less pulling power is needed.
It is possible to adjust the working depth of the tillage machine very precisely by means of the rear roller. As well as consolidating, levelling and crumbling the soil, rear rollers stimulate water absorption and help to improve the oxygen level in the soil. This prevents soil erosion and soil quality.
Size in cm
| Type | No. of tines | Working width | No. of rows | Tine spacing | Line spacing divided | Frame height | HP | Cat. | Hydr. folding frame | Transport width (incl. rear roller) | Kg (incl. rear roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Forest 9-281 | 9 | 281 | 2 | 31,25 | 62,50 | 75 | 75-130 | 3L | No | 300 | 1185 |
| Forest 9-310 | 9 | 310 | 2 | 34,40 | 68,50 | 75 | 80-140 | 3L | No | 325 | 1240 |
| Forest 9-338 | 9 | 338 | 2 | 37,50 | 75 | 75 | 85-150 | 3L | No | 350 | 1295 |
| Forest 11-303 | 11 | 303 | 2 | 27,50 | 55 | 75 | 90-160 | 3L | No | 325 | 1370 |
| Forest 15-510 | 15 | 510 | 2 | 34,25 | 68,50 | 75 | 180-320 | 3L | Yes | 306 | 3310 |
| Forest XL 9-281-2 | 9 | 281 | 2 | 31,25 | 62,50 | 75 | 110-200 | 3L | No | 300 | 1610 |
| Forest XL 9-310-2 | 9 | 310 | 2 | 34,40 | 68,50 | 75 | 120-210 | 3L | No | 350 | 1665 |
| Forest XL 9-338-2 | 9 | 338 | 2 | 37,50 | 75 | 75 | 120-230 | 3L | No | 350 | 1725 |
| Forest XL 9-338-3 | 9 | 338 | 3 | 37,50 | 75 | 75 | 150-230 | 3L | No | 350 | 1825 |
Size in cm
| Type | No. of tines | Working width | Tine spacing | Frame height | HP | Cat. | Hydr. folding frame | Transport width (incl. rear roller) | Kg (incl. rear roller) |
|---|---|---|---|---|---|---|---|---|---|
| Forest XL NK9-281-2 | 9 | 281 | 31,25 | 75 | 130-240 | 3L | No | 300 | 1610 |
| Forest XL NK9-338-2 | 9 | 338 | 37,5 | 75 | 140-270 | 3L | No | 350 | 1725 |
Size in cm
| Type | No. of tines | Working width | Tine spacing | Frame height | HP | Cat. | Hydr. folding frame | Transport width (incl. rear roller) | Kg (incl. rear roller) |
|---|---|---|---|---|---|---|---|---|---|
| Forest XL HS NK 9-280-2 | 9 | 280 | 31,25 | 75 | 100-140 | 3 | No | 300 | 1655 |
| Forest XL HS NK 9-305-2 | 9 | 305 | 34,25 | 75 | 110-170 | 3 | No | 325 | 1705 |
For more than 60 years, we have provided solutions in the areas of soil cultivation, slurry injection and and grassland maintenance.
